 3inch (80mm) thermal paper printing |
    |
|
High printing speed 200mm/S, low noise |
|
|
Supports USB, LAN,COM, WIFI, BLUETOOTH |
|
|
Over Temperature Protection for printing head |
|
|
lSupports cash drawer port |
|
|
Auto cutter |
 |
 |
 |
 |
 |
|
Physical Parameter |
|
|
Dimension |
190mmx140mmx135mm |
|
Weight |
1.0kg |
|
Compatible OS |
Windows/Linux/ Android/IOS |
|

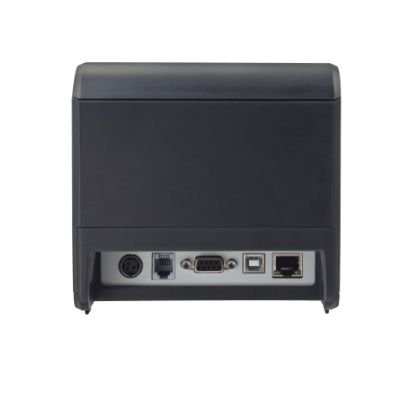

Interface |
USB, USB+LAN, USB+LAN+COM, USB+WIFI, USB+BLUETOOTH |
|
Power |
Input: AC 100-240V 50-59Hz |
|
Output: DC 24V/2.5A |
|
|
Cash drawer power supply |
DC 24V/1A |
|
Environmental |
|
|
Operation Temperature: |
-10 ºC to 45 ºC 10% RH - 80% RH |
|
Storage Temperature: |
-10 ºC to 60 ºC 10% RH - 90% RH |
|
Performance parameter |
|
|
Printing method |
Thermal line printing |
|
Paper width |
79.5±0.5mm |
|
Paper type |
Thermal Roll Paper |
|
Paper Diameter |
80mm |
|
Resolution |
203dpi(8dot/mm) |
|
Printing speed |
200mm/s |
|
Print control instructions |
ESC/POS print commands |
|
Cutter |
Auto cutter |
|
Print life |
150KM |
 |
 |
 |
 |
 |
 |
| Supermrket | Medical Care | Storage | Post | Catering | Store |
| File Name | Download |
| • P804 Desktop Thermal Printer Specification |
 |
