Weight:

227g

Dimension:

158x76x13.7mm (LxWxH)

System Parameter

CPU:

MTK MT6762

Octa-core 2.0GHz processor

OS:

Android 9.0/ Android 14.0

Memory:

64GB EMMC/4GB DDR3

TF expansion:128G

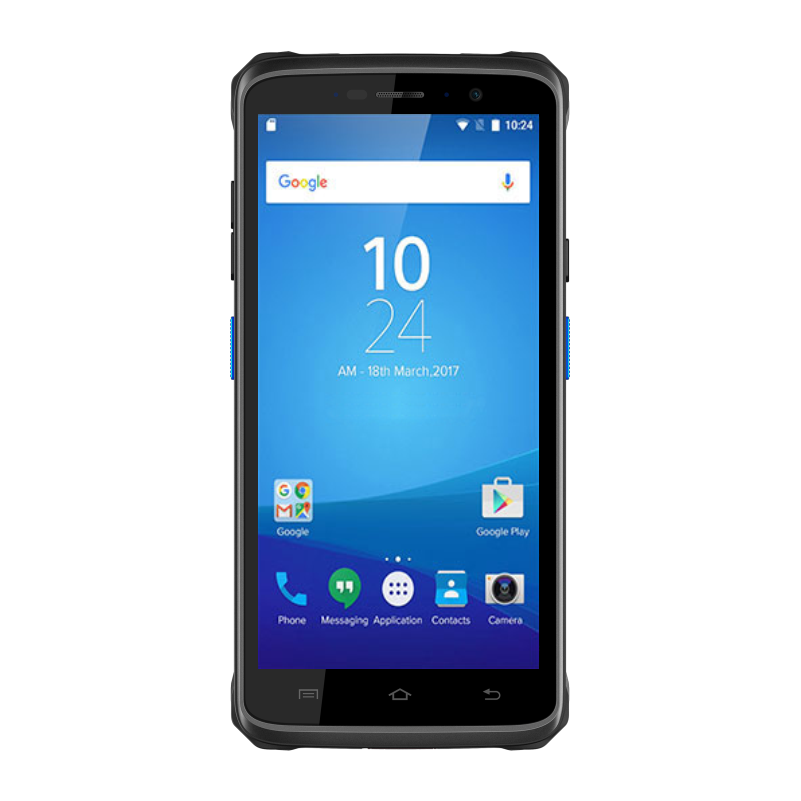

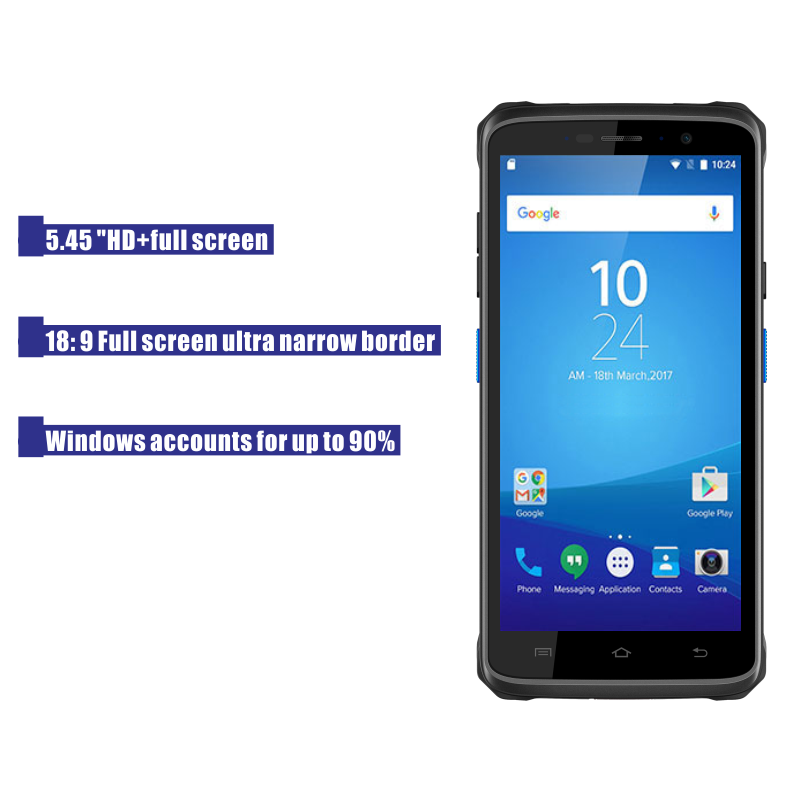

Display:

5.45 inch Screen,

1440*720,

HD+18:9, LTPS

Keys:

3 Virtual function buttons,

4 buttons on the side: "Volume +-" left and right two scan   buttons and power button

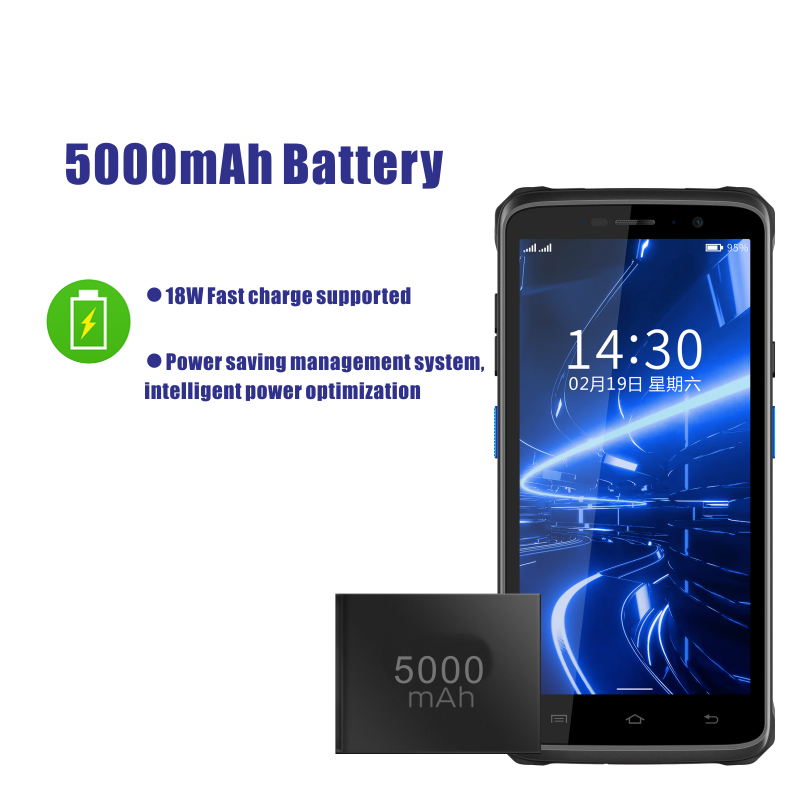

Battery:

5000mAh Battery,

Fast charge supported

Function   Configuration

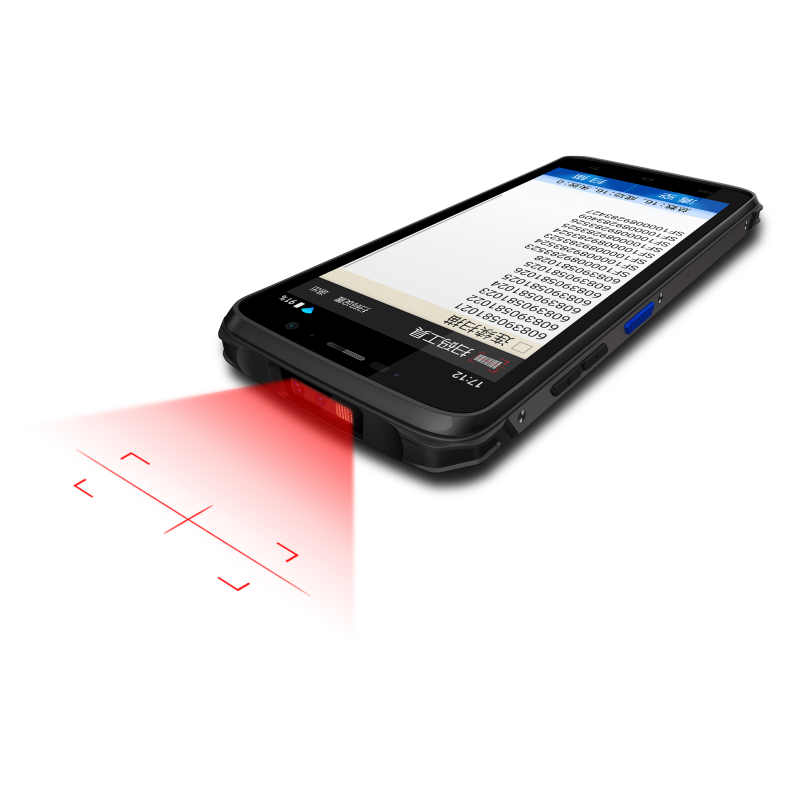

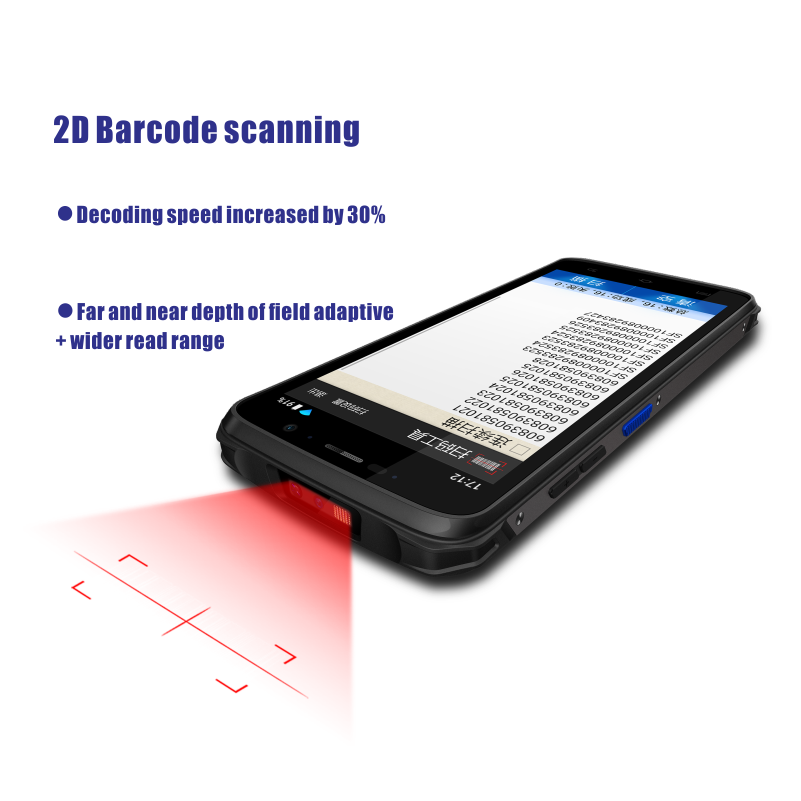

Barcode Scanner:

2D Barcode scanner engine

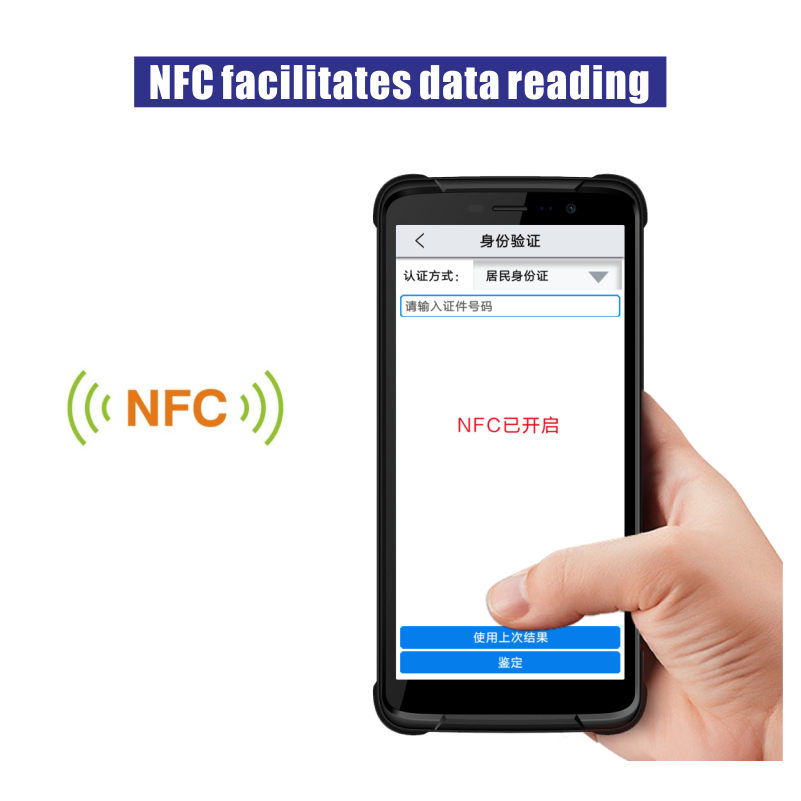

NFC:

13.56M

Supports, 14443A/B

Bluetooth:

BT5.0

Camera:

Front 5MP, Back 13MP

GPS:

GPS, Beidou, GLONASS

Audio:

Built-in speaker, earphone, microphone, vibrator

Sensor:

gravity sensor, gyroscope sensor, geomagnetic sensor, range sensor

External Interface

USB:

TYPE-C

Charging:

TYPE-C

OTG:

Support

Communication

Wireless Communication:

Dual-SIM, 4G

GSM: B2/B3/B5/B8

CDMA/CDMA-EVDO: BC0

TD-SCDMA: B34/B39

WCDMA: B1/ B8

TDD-LTE Bands: B34/B38/B39/B40/B41

LTE_FDD/TDD Bands: B1/B3/B4 /B8

CA: B3+B3 2CA/B1+B3 2CA

WIFI:

2.4G/5G Dual-band,

802.11 A/B/G/N/AC

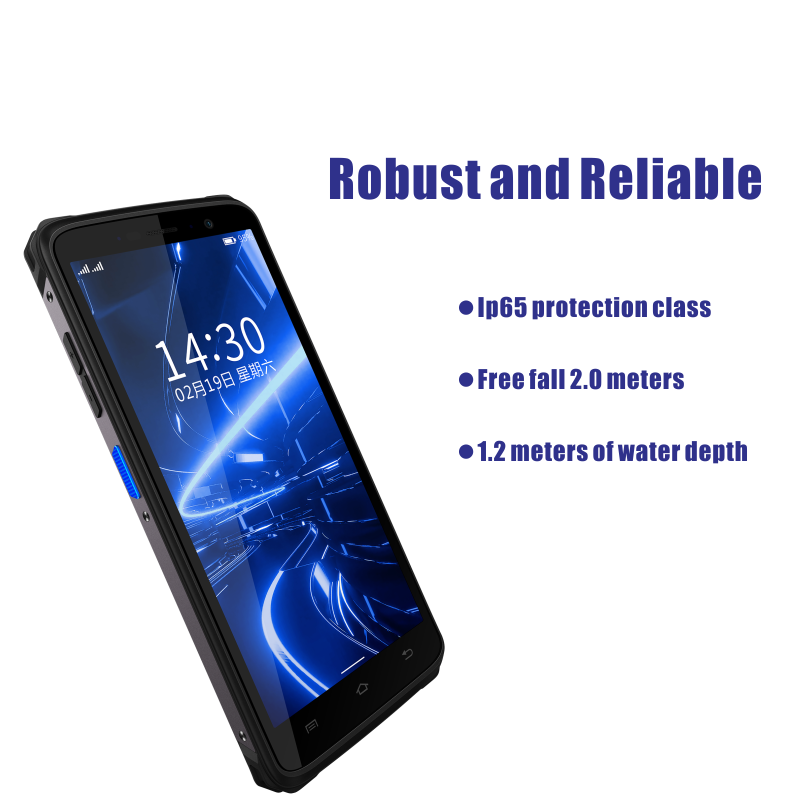

Reliability

Protection Rate:

IP65

ESD:

±8KV discharge, ±12KV air discharge

Drop:

Marble 2M, Cement 1.5M

Environmental

Operation Temperature:

-20°C to 55°C

Storage Temperature:

-40°C to 60°C

Humidity:

0% to 95% (non-condensing)

Accessories

Standard

Charger, data cable, battery, lanyard,

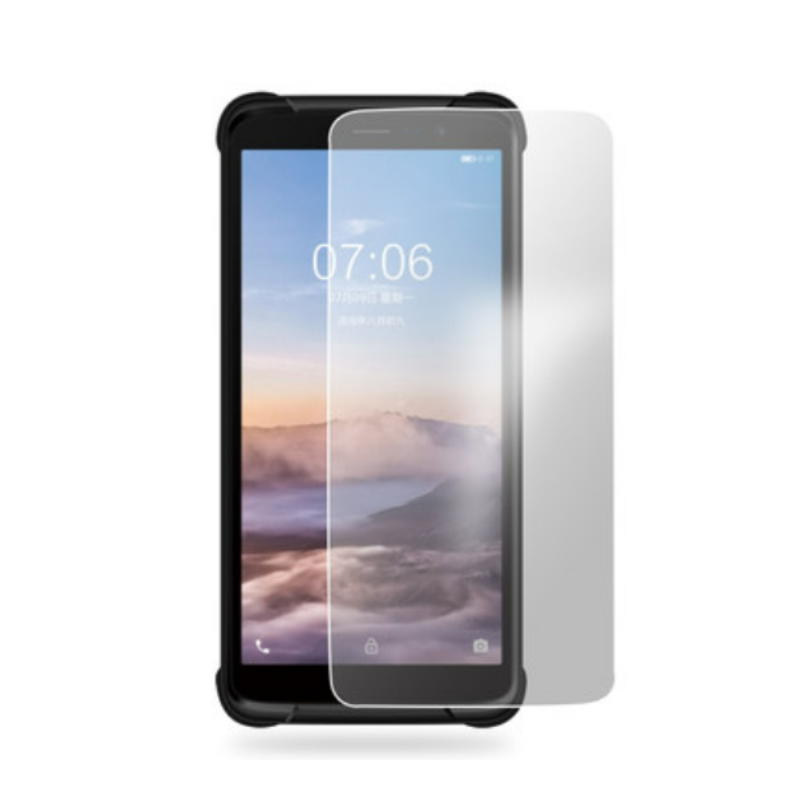

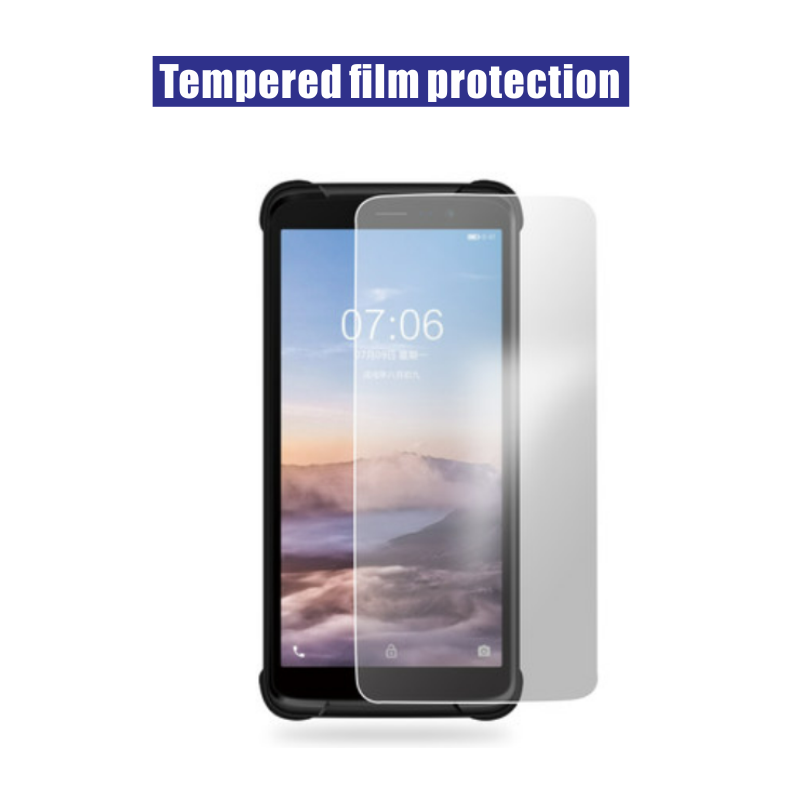

tempered film, protective case

Secondary Development

SDK:

SDK available
